Merrithew SPX Max Plus Reformer Bundle
Merrithew SPX Max Plus™ Reformer Bundle — Reformer and Cadillac in One Machine, Full Functionality in a Limited Space
SPX Reformer — Full Functionality, Both Reformer and Virtual Cadillac
The SPX Max Plus Reformer is a reformer with a Retractable Rope System and Traveling Pulleys on a Vertical Frame, allowing you to train with a wide variety of resistance angles and supporting three-dimensional movement that truly mimics everyday activities. It is both a reformer and a virtual Cadillac in a single machine, delivering maximum functionality in minimum space. It suits practitioners of every fitness level as well as sports training.
The SPX Max Plus Reformer is CE marked as a Class I Medical Device under the EU Medical Device Regulation (EU) 2017/745 (MDR), certifying that it can be formally used in hospitals and healthcare facilities across Europe by medical professionals.

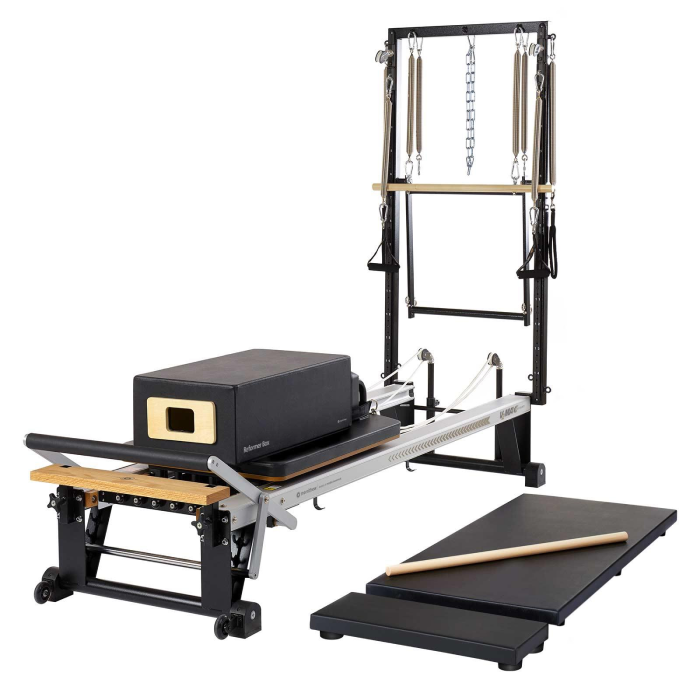

The package comes with a Mat Converter, a Reformer Box with footstrap, a Padded Platform Extender, and a Maple Roll-Up Pole, plus 60 days of free access to digital workouts on Merrithew Connect™. A Tall Box is available as an optional extra for exceptionally tall users.
- Overall Width (Reformer)
26 in (66 cm)
- Overall Length (footbar down)
99.5 in (252.7 cm)
- Minimum Ceiling Height (standing on platform, arms overhead)
97.5 in (2.48 m)
- Machine Weight (Reformer)
164 lbs (74.4 kg)
- Carriage Width
22 in (56 cm)
- Carriage Length
38.5 in (98 cm)
- Floor-to-Carriage Height
9.5 in (24 cm)
- Vertical Frame Width
28.3 in (72 cm)
- Vertical Frame Height from Floor
68.5 in (174 cm)
- Minimum Ceiling Height for Vertical Frame Installation
77 in (195.6 cm)
- Vertical Frame Weight
36 lbs (16.3 kg)
- Maximum User Weight
350 lbs (159 kg)
- Number of Springs (Reformer)
5 (three at 100% tension, one at 50%, one at 25%)
- Gearbar Positions
3 positions
- Carriage Stopper Positions
6 positions
- Headrest Adjustment Positions
3 positions
- Footbar Adjustment Positions
4 positions
- Made in
Canada
- Extra-Length Upgrade
An additional 6 in (15 cm) of length, suitable for tall users or users with a long torso; additional cost applies


Key Features and Highlights
Durable Construction — Covered in high-quality vinyl faux leather and high-density EVA foam, built to withstand frequent, continuous use.
Rope and Pulley System — A Retractable Rope System and Traveling Pulleys on the Vertical Frame make rope length easy to adjust and offer a wide variety of resistance angles and ranges of motion.
Smooth Rails — The carriage glides on aluminium C-channel rails for smooth, friction-free movement.
High-Quality Spring Set — Designed to withstand heavy use with the Jumpboard, Cardio-Tramp® Rebounder, and other accessories, which attach quickly and securely.
Multi-Position Adjustability — 3 Gearbar positions, 6 carriage-stopper positions, 3 headrest positions, and 4 footbar positions for maximum comfort and performance.
Wooden Standing Platform — 1 inch (25 mm) thick, supporting a wide range of body-weight exercises, with shoulder rests that are easy to remove.
Stackable When the Vertical Frame Is Removed — The machine can be stacked once the Vertical Frame is removed, with the shoulder rests and traveling pulleys sliding into place without having to unhook the ropes.
Reformer + Virtual Cadillac in One Machine — Adds Cadillac equipment to the reformer in a single frame, supporting a variety of spring setups for training the arms, legs, and torso.
Mat Converter — An additional pad for stable, comfortable Mat Work and Cadillac training, included in the Bundles.
New Comfort Footbar — Softer and more comfortable for both feet and hands.
Easy-Roll Wheels — For easy moving and storage, on both sides of the machine. A rolling base lets you store machines stacked together, with minimal assembly time.
Key Components

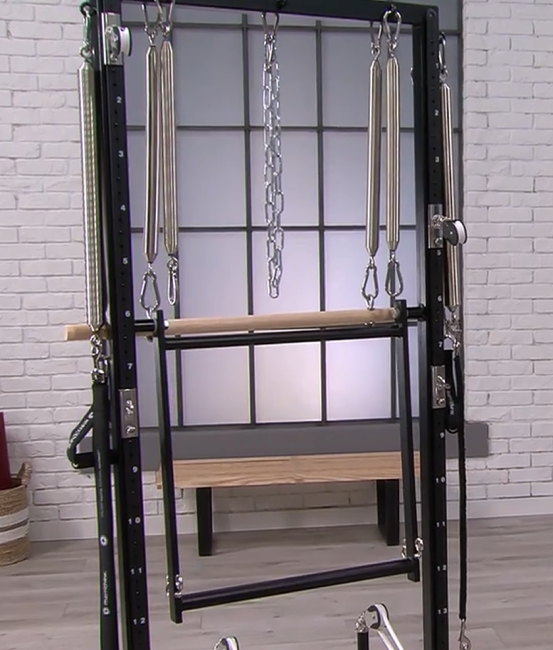

Vertical Frame — Fitted with a full set of springs: 2 Push-thru Springs, 2 Roll-down Springs with a maple Roll-down bar, 2 Arm Springs with foam-covered handles, 2 Leg Springs with straps, 2 extension straps, 2 spring hooks, 2 pulleys, and a hanging chain.
Mat Converter — An additional pad for stable Mat Work and Cadillac training.
Reformer Box with Footstrap — To expand the range of exercises, it comes with a footstrap.
Padded Platform Extender — Adds support area for a wider variety of exercises.
Maple Roll-Up Pole — A training accessory made from quality maple wood.
High Precision Springs Package — A set of 5 reformer springs (3×100%, 1×50%, 1×25%) with 5 neoprene spring covers to reduce noise.
Upholstery Colour Options — 6 standard colours, plus more than 20 special colours available when ordering (additional cost), and an Owner's Manual included.
User Levels
Beginners — A clear structure and adjustment system helps you learn the basic exercises with confidence.
General Fitness / Gym Members — Supports training at every ability level, with multiple spring sets and resistance angles adjustable on the Vertical Frame.
Athletes and Trainers — A wide variety of resistance angles and three-dimensional movement suit sports training and specialised performance development.
Studios Needing Full Functionality in Limited Space — Combines Reformer and Cadillac functions in one machine, saving space and budget compared with buying two separate machines. Ideal for studios that want variety in a limited area.
Muscles Worked and Benefits
Core — Exercises on the sliding carriage and Vertical Frame keep the core muscles engaged throughout the movement.
Arms & Shoulders — Arm Springs and traveling pulleys strengthen the arms and shoulders and offer a wider variety of movement angles than a typical reformer.
Legs & Hips — Leg Springs and Footwork on the 4-position footbar strengthen the legs and hips.
Back & Posture — Roll-down Springs and controlled training strengthen the back muscles and help correct posture.
Overall Benefits — Three-dimensional movement that mimics everyday activities develops strength, flexibility, balance, and whole-body coordination. Suitable for every type of client, from rehabilitation to sports training.

Usage and Maintenance
Before Every Use — Check that the Gearbar, headrest, footbar, and the spring setup on the Vertical Frame suit the user before every session.
Adjusting Resistance — Choose springs to suit the practitioner's ability, starting from lower tension and moving up to higher, for both the Reformer and Vertical Frame springs.
Cleaning — Wipe the carriage surface and padding with a damp cloth. Avoid harsh, corrosive chemicals.
Rope and Pulley Care — Regularly inspect the retractable rope system, traveling pulleys, and hanging chain. If you notice any stiffness or damage, stop using the machine and contact a specialist.
Storage — Remove the Vertical Frame before stacking the machines. Use the Easy-Roll wheels to tilt the machine upright and stack it on the rolling base to save storage space.
Periodic Inspection — Periodically check all spring sets, neoprene spring covers, straps, and hand-and-foot loops for safe long-term use.
Not sure which equipment is right for you?
How does the SPX Max Plus Reformer Bundle differ from the SPX Max Reformer?
The SPX Max Plus comes with a Vertical Frame featuring traveling pulleys and multiple spring sets, making it both a reformer and a virtual Cadillac in one machine. The SPX Max is a standard reformer focused on great value and light weight.
What is the maximum user weight?
It supports a maximum user weight of 350 lbs (159 kg).
Can the machine be stacked for storage?
Yes, it can be stacked once the Vertical Frame is removed from the machine.
