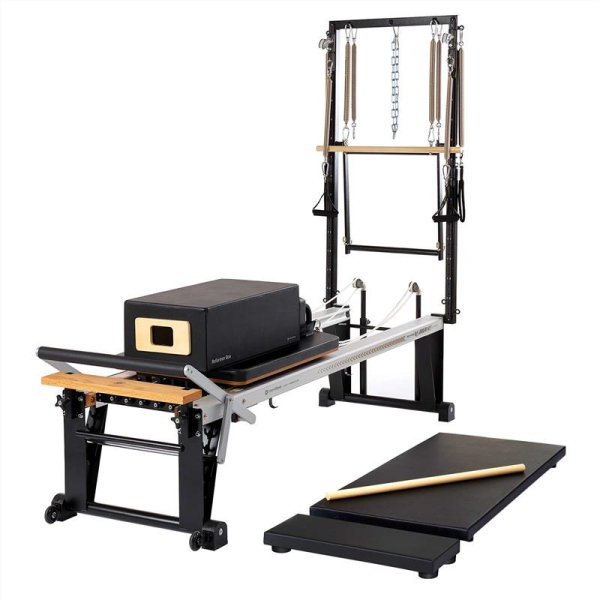

Merrithew Rehab V2 Max Plus Reformer Bundle
Merrithew Rehab V2 Max Plus Reformer Bundle — A High-Carriage Reformer with Vertical Frame for Rehabilitation and Injury Prevention
A Rehabilitation Tool in the Rehab Range
The Rehab V2 Max Plus Reformer comes with a carriage that is higher than the standard model, making it ideal for physical therapy / physiotherapy clinics that serve older clients or people with limited mobility. It comes with a High-Precision Spring Package that provides resistance across every level for patients at every stage of rehabilitation.
Adding a Vertical Frame with an Adjustable Pulley System offers a wide variety of resistance angles, allowing precise training of specific muscle groups and helping keep joint movement within the appropriate range of motion. It is an excellent tool for rehabilitation and injury prevention.
The Rehab V2 Max Plus Reformer is CE marked as a Class I Medical Device under the EU Medical Device Regulation (EU) 2017/745 (MDR), certifying that it can be formally used in hospitals and healthcare facilities across Europe by medical professionals.
The package comes with a Mat Converter, a Reformer Box with footstrap, a Padded Platform Extender, and a Maple Roll-Up Pole, plus 60 days of free access to digital workouts on Merrithew Connect.
- Overall Width (Reformer)
29.25 in (74.3 cm)
- Overall Length (footbar down)
100.5 in (255.25 cm)
- Minimum Ceiling Height (standing on platform, arms overhead)
112.5 in (2.86 m)
- Machine Weight (Reformer)
226 lbs (102.7 kg)
- Carriage Width
24 in (61 cm)
- Carriage Length
38.5 in (98 cm)
- Floor-to-Carriage Height
23.25 in (59 cm) — higher than a standard reformer for easier access
- Vertical Frame Width
30.5 in (77.5 cm)
- Vertical Frame Height from Floor
79.5 in (202 cm)
- Minimum Ceiling Height for Vertical Frame Installation
90 in (228.6 cm)
- Vertical Frame Weight
41.5 lbs (18.2 kg)
- Maximum User Weight
425 lbs (193 kg)
- Number of Springs (Reformer)
5 (three at 100% tension, one at 50%, one at 25%)
- Gearbar Positions
3 positions
- Carriage Stopper Positions
6 positions
- Headrest Adjustment Positions
3 positions
- Footbar Adjustment Positions
4 positions
- Made in
Canada
- Extra-Length Upgrade
An additional 6 in (15.2 cm) of length, suitable for tall users or users with a long torso; additional cost applies
Key Features and Highlights
Durable Construction — Covered in high-quality vinyl faux leather and thick EVA foam, built to withstand continuous use.
Higher Carriage for Rehabilitation — Raised above a standard reformer so patients and older adults can access the machine more easily, reducing the risk when getting on and off.
Adjustable Pulley System — The adjustable pulleys on the Vertical Frame offer a wide variety of resistance angles, allowing precise training of specific muscle groups and control of joint movement.
High-Traction Floor-Grip Legs with Wheels — Made from silicone rubber and PVC, gripping the floor well on any surface. Supports high-force training with the Jumpboard or Cardio-Tramp® Rebounder.
Rope System — Patented Retractable Rope System with automatic rope retraction and easy rope-length adjustment, increasing range of motion and the flow of exercises.
Smooth Rails — The carriage glides on aluminium C-channel rails for smooth, friction-free movement.
Multi-Position Adjustability — 3 Gearbar positions, 6 carriage-stopper positions, 3 headrest positions, and 4 footbar positions for maximum comfort and performance.
Wooden Standing Platform — 1 inch (2.5 cm) thick, supporting a wide range of body-weight exercises, with pommel-shaped shoulder rests that are easy to remove.
Reformer + Virtual Cadillac in One Machine — Adds Cadillac equipment to the reformer in a single frame, supporting a variety of spring setups for training the arms, legs, and torso, suited to holistic rehabilitation.
Mat Converter — An additional pad for stable, comfortable Mat Work and Cadillac training, included in the Bundles.
New Comfort Footbar — Softer and more comfortable for both feet and hands.
Easy-Roll Wheels — For easy, fast moving and repositioning, suited to clinics that change rooms or clean frequently.
Key Components
Vertical Frame — Fitted with a full set of springs: 2 Push-thru Springs, 2 Roll-down Springs with a maple Roll-down bar, 2 Arm Springs with foam handles, 2 Leg Springs with straps, 2 extension straps, 2 spring hooks, 2 pulleys, and a hanging chain.
Mat Converter — An additional pad for stable Mat Work and Cadillac training.
Reformer Box with Footstrap — To expand the range of exercises, it comes with a footstrap.
Padded Platform Extender — Adds support area for a wider variety of exercises.
Maple Roll-Up Pole — A training accessory made from quality maple wood.
High-Traction Floor-Grip Legs with Wheels — Grip the floor well on any surface, supporting high-intensity training.
High Precision Springs Package — A set of 5 reformer springs (3×100%, 1×50%, 1×25%) with 5 neoprene spring covers to reduce noise.
Upholstery Colour Options — 6 standard colours, plus more than 20 special colours available when ordering (additional cost), and an Owner's Manual included.
User Levels
Beginners in Rehabilitation — The high carriage and adjustment system make the machine easy to access, suited to starting a basic rehabilitation program.
Physical Therapy / Physiotherapy Clinics — Suited to physiotherapy clinics and healthcare facilities serving patients, injured people, or those who need intensive physical rehabilitation.
Older Adults / People with Limited Mobility — The carriage height eases the effort of getting up and down, suiting older clients or those with limited mobility.
Physiotherapists and Injury-Prevention Trainers — The adjustable resistance angles from the Vertical Frame suit specialised training for injury prevention and athlete rehabilitation.
Muscles Worked and Benefits
Core Stability — Exercises on the sliding carriage and Vertical Frame help restore core stability gradually and safely.
Arms & Shoulders (Peripheral Mobility) — Arm Springs and angle-adjustable pulleys help precisely restore range of motion in the arms and shoulders after injury.
Legs & Hips — Leg Springs and Footwork on the 4-position footbar help restore strength and balance in the legs and hips.
Back & Posture — Roll-down Springs and controlled training help restore the back muscles and balance posture gradually.
Overall Rehabilitation and Injury-Prevention Benefits — A wide variety of resistance angles allows precise training of specific muscle groups and keeps joint movement within the appropriate range of motion. Suited to rehabilitation and injury prevention at every stage of treatment.
Usage and Maintenance
Before Every Use — Check that the Gearbar, headrest, footbar, and the spring setup on the Vertical Frame suit each patient before every session.
Adjusting Resistance — Choose springs to suit the patient's stage of rehabilitation, starting from the lowest tension and increasing as they progress, for both the Reformer and Vertical Frame springs.
Cleaning — Wipe the carriage surface and platform extender with a damp cloth. Avoid harsh, corrosive chemicals, especially in healthcare facilities where cleaning is frequent.
Rope and Pulley Care — Regularly inspect the retractable rope system, traveling pulleys, and hanging chain. If you notice any stiffness or damage, stop using the machine and contact a specialist.
Floor-Grip Leg Care — Check that the floor-grip legs and wheels are in good condition for stability while helping patients on and off the machine.
Periodic Inspection — Periodically check all spring sets, neoprene spring covers, straps, and hand-and-foot loops for long-term patient safety.
Not sure which equipment is right for you?
How does the Rehab V2 Max Plus Reformer Bundle differ from the Rehab V2 Max Reformer?
The Rehab V2 Max Plus comes with a Vertical Frame featuring an adjustable-angle pulley system, allowing more precise training of specific muscle groups and better control of joint movement. It suits intensive rehabilitation and injury prevention, while the Rehab V2 Max is a standard high-carriage reformer for general physiotherapy clinics.
Who is it especially suited to?
It suits physiotherapy clinics that care for older patients or people with limited mobility and need equipment with a wide variety of resistance angles for targeted rehabilitation and injury prevention.
What is the maximum user weight?
It supports a maximum user weight of 425 lbs (193 kg).
