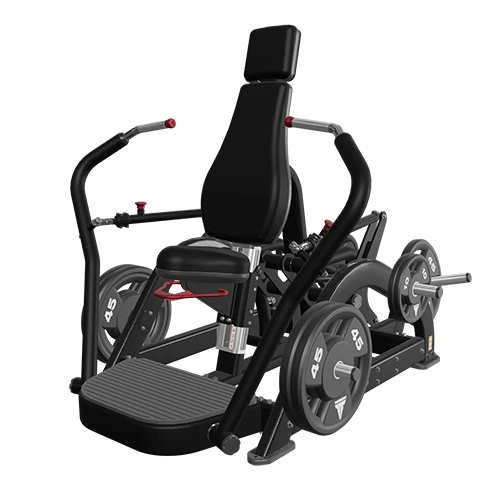

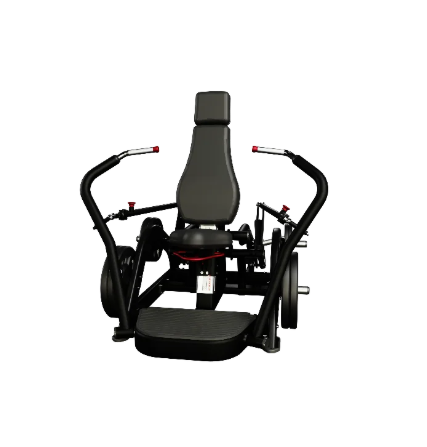

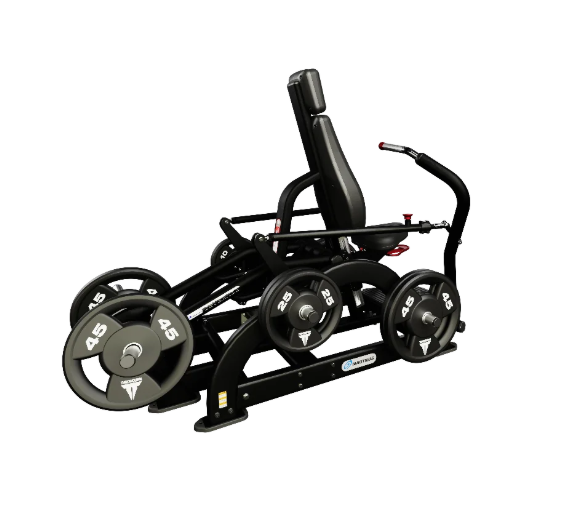

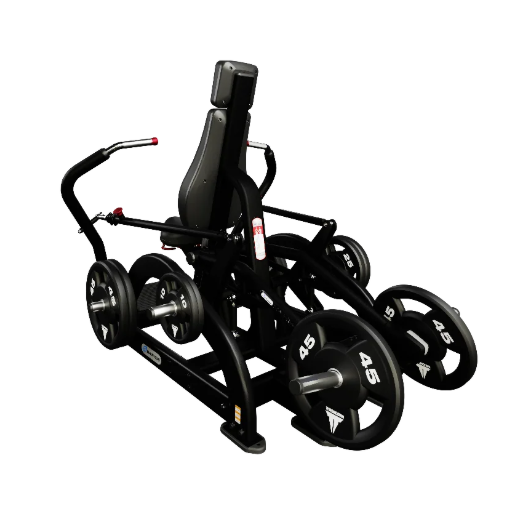

Nautilus Leverage Elite - Chest Press
Nautilus Leverage Elite Chest Press — A chest-training machine with independent arms and a convergent motion
A chest press that trains the chest muscles effectively
The Nautilus Leverage Elite Chest Press effectively strengthens the pectoral muscles with a converging motion that replicates the mechanics of a free-weight chest press. It features an independent arm system (Independent Arm Motion), pre-stretch adjustability, and an ergonomic design, making it suitable for commercial fitness facilities seeking to improve their upper-body strength equipment.
The independently moving arms provide for balanced training on both sides and better handle strength imbalance between the left and right arms than a conventional single-bar machine. The seat has a gas-assist system for easy adjustment, and the knurled stainless steel grips provide a solid hold and prevent slippage.
Nautilus creates plate-loaded strength equipment that is unique to each exercise, using multi-point lever and cam systems optimized to match the mechanics of human movement. A sleek design with built-in weight plate storage makes the Leverage line a standout choice for both fitness center operators and members.
- Length
71 in. (180 cm)
- Width
59 in. (150 cm)
- Height
58 in. (147 cm)
- Machine Weight
481 lbs (218 kg)
- Range of Motion
Fixed Path
- Seat Adjustment System
Gas-assist seat adjustment with a wrap-around handle for adjusting the seat to any height
- Color-Coded Pivot Points and Adjustment Positions
On every machine
- Movement Type
Can be used unilaterally (one arm) or bilaterally (both arms together)
- Movement Direction
Converging and diverging motion, with pre-stretch adjustability, depending on the SKU model
- Drive System
Belt & Lever Drive
- Standard Frame Color
Black
- Standard Upholstery Color
Black
- Finish Construction
Electrostatic Powder Coating
- Transport Wheels
None. Non-slip rubber feet are used to protect the floor
- Frame Tube Profile and Thickness
Most of the steel frame is 3 mm or 2.5 mm thick / 11 gauge
- Grips
Stainless steel, knurled
- Footplate
Extra-large non-slip rubber pad
- Ergonomic Pads
Contoured backrest pad, with lumbar support on some models
- Maximum User Weight
270 lbs per arm (123 kg), 540 lbs (245 kg) total maximum
- Starting Resistance
15 lbs per arm (6.8 kg)
- Weight Plate Storage System
4 weight plate storage horns for convenient access
- SKU
9NP3-L2002

Key Features and Highlights
Natural Pressing Motion — The converging motion most closely mimics the dynamics of a free-weight press.
Balanced Training — Independently moving arms help develop strength evenly on both sides and are effective at correcting muscle asymmetry.
Custom Range of Motion — A user-controlled pre-stretch adjustment system supports a wide variety of training needs.
Premium Comfort — The seat adjusts with a gas-assist system, and well-positioned handles help set up the correct training posture.
Efficient Storage — Built-in weight plate storage keeps the training area clean and organized.
Stainless Steel Knurled Grips — Knurled stainless steel grips feel close to an Olympic barbell, enhancing a performance-focused training experience.
Low Load Points — Weight plate loading points are positioned low, for easy access and convenient loading and unloading of plates.
Lever and Cam System — Uses multi-point lever and cam systems designed specifically for each exercise, optimized to match the mechanics of human movement.
User Levels
Beginners — Color-coded adjustment points identify adjustment positions for easy, quick use.
Intermediate to Advanced Practitioners — Supports a maximum total load of 540 lbs, with an independent arm system, suited to those who want to seriously develop chest strength.
Athletes who want to improve symmetry — Unilateral movement effectively corrects left-right muscle imbalances, suited to athletes who want to improve body symmetry.
Commercial Fitness Centers — A strong structure designed for continuous commercial use, suited to fitness centers that want to upgrade their upper-body strength zone.
Muscles Worked and Benefits
Pectorals — The converging motion fully activates the middle and outer chest throughout the range of motion.
Triceps — Pressing in line with the chest muscles engages the triceps as well, toward the end of arm extension.
Anterior Deltoids — Maintaining a stable shoulder position during the press helps build strength in the front shoulder muscles.
Core Stability — Pressing from a stable seated position with a contoured backrest helps maintain core balance during training.
Overall Benefits — The independent arm system and natural movement develop chest strength in a balanced, effective way, suitable for fitness members of every level.


Usage and Maintenance
Before every use — Adjust the seat height and handle position to suit the user's body before every session.
Adding weight safely — Add weight plates gradually, starting from the starting resistance of 15 lbs per arm, and make sure the plates are securely seated before training.
Unilateral training for balance — Use unilateral movement periodically to check for and correct strength imbalances between the left and right arms.
Cleaning — Wipe the pads and grips with a slightly damp cloth. Avoid harsh, corrosive chemicals.
Gas-assist system and belt care — Regularly inspect the gas-assist seat adjustment system, pivot points, and drive belt. If you notice stiffness or damage, stop using the machine and contact a specialist.
Weight plate storage — Always store weight plates on all 4 storage horns of the machine after use, to keep things organized and safe for the next user.
Not sure which equipment is right for you?
How does the Nautilus Leverage Elite Chest Press differ from a typical chest press machine?
It uses an independent arm system (Independent Arm Motion) with arms that move separately along a converging path, so training feels closer to a free-weight press than a single-bar machine, and it corrects muscle imbalances between the two sides better.
What is the maximum load capacity?
The maximum load is 270 lbs per arm (123 kg), 540 lbs (245 kg) total, with a starting resistance of 15 lbs per arm.
Is there built-in weight plate storage?
Yes. The machine comes with 4 built-in weight plate storage horns for organization and convenient access.
